Pye in the Sky

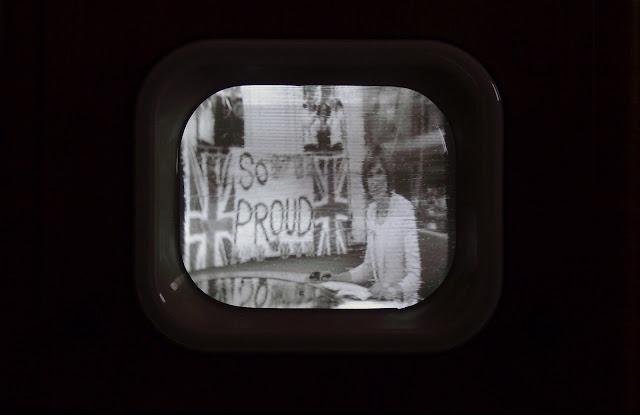

Is it possible to watch live the Six O'Clock News on a 63-year-old Pye LV20 elevison? Acquire an Aurora standards converter, supply this with power of nine volts DC at 250 milliamps, and connect it to the video and audio outputs of a digibox or other transmission source. Make up a length of 75 ohm coaxial cable with an F-type radio frequency (RF) connection at the Aurora end, and connect the other end to a balun via a standard coax plug.

Solder two short lengths of insulated copper wire into a pair of wander plugs, crimp onto the other end of each wire a ring terminal, and screw these into the terminals of the balun. Push the wander plugs into the twin line antenna socket of the Pye, and power up this, the standards converter, and the source. Select the correct RF channel on the converter - in this case 61.75 MHz for the picture and 58.25 MHz for the sound. Answer: Yes. But beware the possibility of a live chassis.
